替換日本FE-0360，F(xiàn)C0360流量指示器，流量開關
用途Service: MGPS，Marine Growth Prevention System，防海生物裝置，防海生物系統，防止海洋生物裝備
名稱Name: 流量計，流量開關，流量計帶開關，流量顯示器，流量指示器

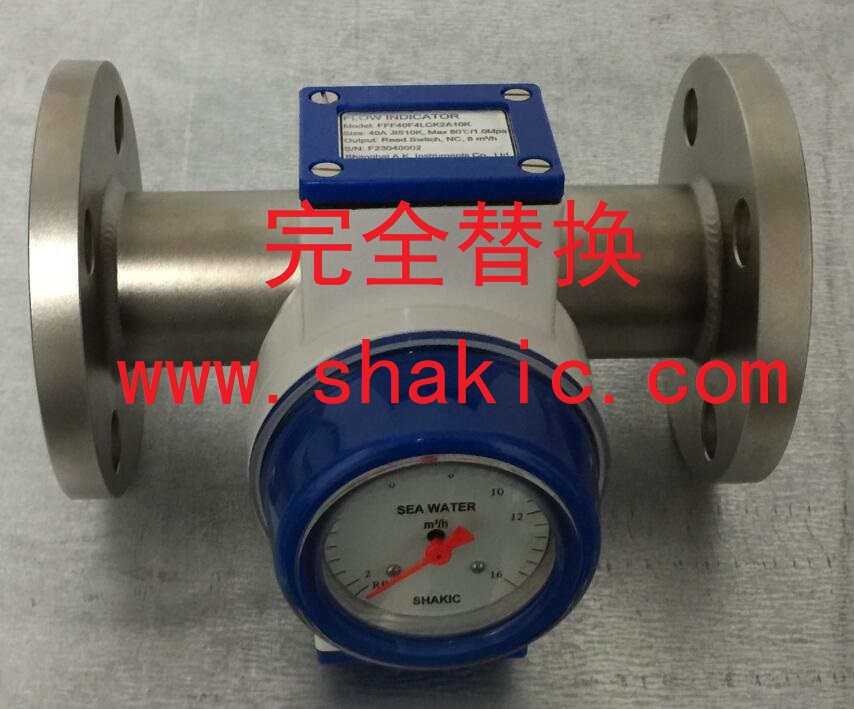

型號Model: FFF series
口徑SIZE:
----15A JIS10K FF / JIS5K FF (L=220mm)，
----20A JIS10K FF / JIS5K FF (L=220mm)，
----25A JIS10K FF / JIS5K FF (L=220mm)，
----32A JIS10K FF / JIS5K FF (L=220mm)，
----40A JIS10K FF / JIS5K FF (L=220mm)，
----50A JIS10K FF / JIS5K FF (L=220mm)，
----65A JIS10K FF / JIS5K FF (L=260mm)，
----80A JIS10K FF / JIS5K FF (L=300mm)，
液體Liquid: 海水Sea Water, 其他
流量范圍Flow Range: 按日本原廠實際流量范圍
精度Accuracy: ±5 %FS
介質溫度范圍Temperature Range: -20 ~ +80℃
公稱壓力Nominal Pressure: 1.0 MPa
測量類型Measurement Type: Flapper type
本體材質/彈簧材質Body＆Spring Material: 316L Stainless Steel＆Hastelloy C-276
連接尺寸Connection Size: 按日本原廠口徑，
法蘭尺寸Flange Size: 按日本原廠法蘭尺寸，OD=？ mm, PCD=？ mm, Holes=?-?
流量計長度Meter Length: 按日本原廠長度，？ mm
指示器指針Pointer of Indicator: 瞬時流量Instantaneous Flow
指示器器材質Indicator Cover: Plastic
開關類型Switch Type: Reed Switch
觸點負載Contact Raiting：
----觸點容量 Contact Capacity: MAX. 50VA
----操作電壓Operating Voltage: MAX. 220V AC/DC
----操作電流Operating Current: MAX. 0.5A AC/DC
報警點設定值Setting Point(Qs): Lower Limit or Upper Limit, ？ m3/h (Variable)
動作方向Contact Direction:
-----A:常閉型Normally Close type, On above setpoint: 0%→Qs(NC), >Qs(ON)
-----B:常開型Normally Open type, On above setpoint: 0%→Qs(NO), >Qs(ON)
電氣接口Cable Fitting: M20×1.5
防護等級Protection Class: IP65
安裝位置Installation Position:
----水平管道臥式安裝Horizontal pipe horizontal installation (See from the front)
----垂直管道臥式安裝Vertical Pipe (See from the front)
介質流向Flow Direction:
----Left → Right, or Right → Left
----Bottom → Top, or Top → Bottom
|
日本MGPS，海洋生物付著防止裝置MARINE GROWTH PREVENING SYSTEM

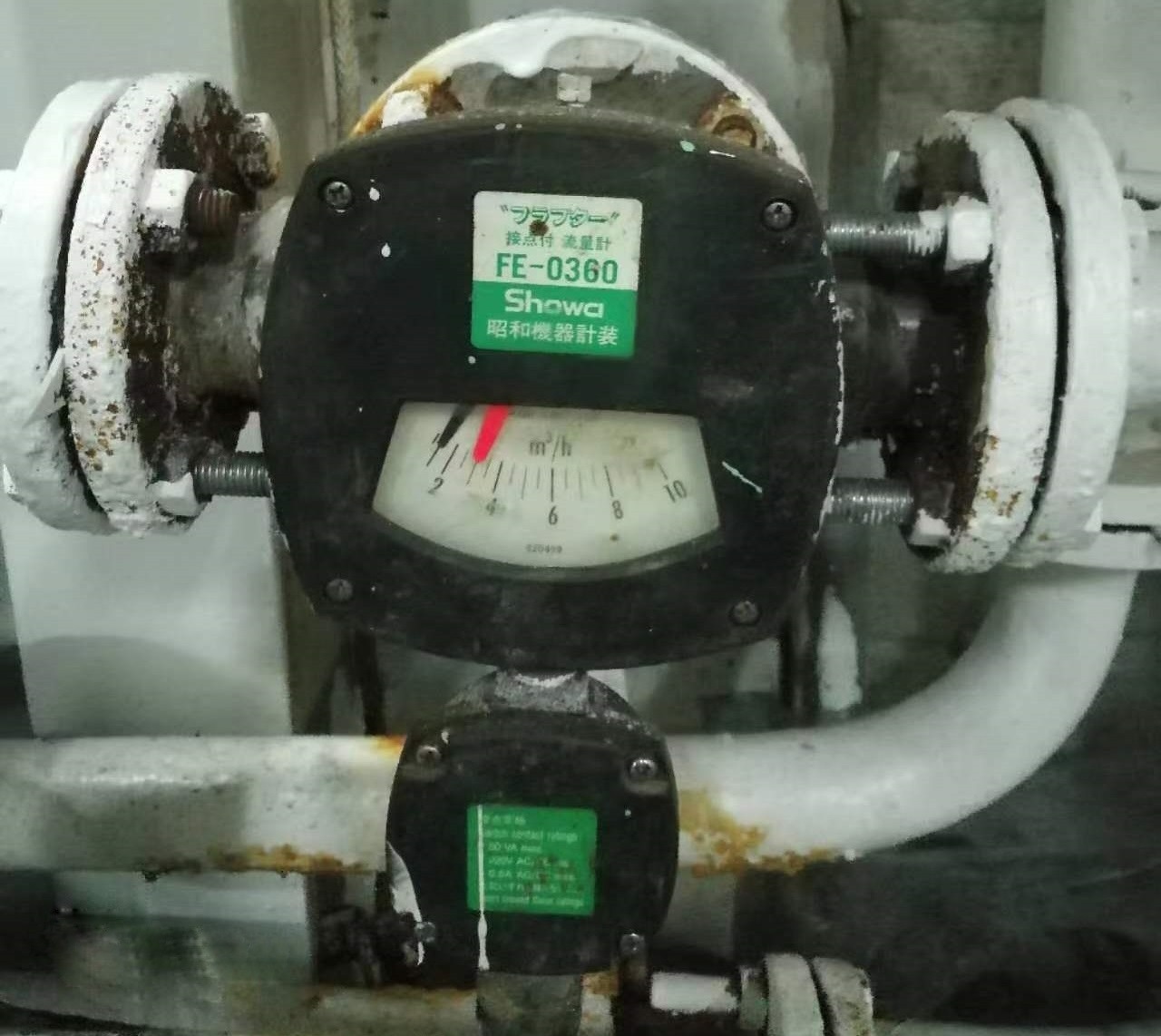

NAME: FLOW INDICATOR，F(xiàn)lapper Type Area Flow meter，F(xiàn)laptor，F(xiàn)low meter with switch
TYPE/Model: FE-0360, FC0360
MAKER:
----SHOWA INSTRUMENTINFORMATION CO.，LTD，昭和機器計裝(株)，昭和機器計裝株式會社
----NIPPON FLOW CELL，日本フローセル株式會社
----HIKARI SANGYO CO. LTD. 晃産業株式會社，晃產業株式會社
本體材質Body Material: FCD450
呼徑SIZE:
15A JIS10K-FF (Flange to Flange=220mm)
20A JIS10K-FF (Flange to Flange=220mm)
25A JIS10K-FF (Flange to Flange=220mm)
32A JIS10K-FF (Flange to Flange=220mm)
40A JIS10K (Flange to Flange=220mm)
50A JIS10K (Flange to Flange=220mm)
65A JIS10K (Flange to Flange=260mm)
80A JIS10K (Flange to Flange=300mm)
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
|
 |
 |
替換日本/韓國/美國/意大利等流量指示器，流量監視器，流量計, Flow Monitor, Flow Indicator, sight glass type，Sight Flow Indicator, Flapper type, Flow meter
用途Service: 防海生物裝置，防海生物船舶防止海生物生長裝置，防海洋生物生長系統，MGPS(Marine Growth Prevention System
型號Model: SFF系列
產品類型Product Type: C type圓形; D type方形
口徑Size:
DN6
DN8
DN10
DN12
DN15
DN20
DN25
DN32
DN40
DN50
DN65
DN80
DN100
DN125
DN150
DN200
DN250
最大壓力Max Pressure: 1.0 MPa
最高壓力Max Temperature: 120℃
流體Fluid: SEA Water
流量刻度Flow Scale: 按原廠流量范圍
視窗Windows: 雙視窗Double windows
接液材質Wetted Materials:
----本體材質Body & Cover & Bolt: SS304 Stainless Steel
----擋板與彈簧材質Flapper & Spring: SS304 Stainless Steel
----視鏡材質Sight Glass: Tempered Glass
-----密封圈材質Gaskets: PTFE
過程連接Process Connection: 螺紋或法蘭，按原廠標準
螺紋或法蘭尺寸Flange Size: 按原廠尺寸
總長度Length (Face to Face): 按原廠長度
安裝位置Installation Position:
----水平管道臥式安裝(從前面觀察)Horizontal pipe horizontal installation (See from the front)
----水平管道立式安裝(從上面觀察)Horizontal pipe vertical installation (See from the above)
----垂直管道(從前面觀察)Vertical pipe (See from the front)
流向Flow Direction:
----Left → Right, Right → Left
----Bottom → Top, Top → Bottom
|
第一家：Type/Model: FS-0400 サイトグラス式 流量監視計Flow Monitor, Flow Indicator, sight glass type，F(xiàn)low meter流量計
MAKER: 日本SHOWA INSTRUMENTINFORMATION CO.，LTD，昭和機器計裝(株)，日本昭和機器計裝株式會社；NIPPON FLOW CELL MFG., LTD.，日本フローセル株式會社
本體材質Body Material: 15A～100A：FCD450；125A以上: SS400
口徑/呼徑SIze:
Rc1/2, Rcメネジ, 面間L=120mm
Rc3/4, Rcメネジ, 面間L=120mm
25A JIS10K FF, 面間Flange to Flange=220mm
32A JIS10K FF, 面間Flange to Flange=220mm
40A JIS10K FF, 面間Flange to Flange=220mm
50A JIS10K FF, 面間Flange to Flange=220mm
65A JIS10K FF, 面間Flange to Flange=260mm
80A JIS10K FF, 面間Flange to Flange=300mm
100A JIS10K FF, 面間Flange to Flange=330mm
125A JIS10K FF, 面間Flange to Flange=380mm
150A JIS10K FF, 面間Flange to Flange=480mm
200A JIS10K FF, 面間Flange to Flange=650mm
250A JIS10K FF, 面間Flange to Flange=680mm
300A JIS10K FF, 面間Flange to Flange=720mm
第二家：MGPS Flow Indicator for OUTLET SIDE DISTRIBUTION
Type/Model: GEFDF
MAKER: 日本CONHIRA CO.LTD.，自本W(wǎng)ASINO KIKI CO., LTD.
本體材質Body Material: FCD450
口徑/呼徑SIze:
DN15 JIS10K, Flange to Flange=150mm
DN20 JIS10K, Flange to Flange=150mm
DN25 JIS10K, Flange to Flange=170mm
DN32 JIS10K, Flange to Flange=200mm
DN40 JIS10K, Flange to Flange=200mm
DN50 JIS10K, Flange to Flange=220mm
第三家：
第四家：
MGPS (Marine Growth Prevention System) ECOLCELL ANTIFOULING SYSTEM ND50 FLOWMETER
MAKER: 意大利ITALY AZIEDA CHIMICA GENOVESE(ACG)
DN50, DIN PN10 RF Flange, Flange to Flange=280mm
|
 |
 |
//////////////////////////////
//////
/
///////////
///////
//////
/////////////
|
/////////////////////////
//////
/
///////////
///////
//////
/////////////
|
 |
 |
| /////////////////////////////////// |
////////////////////////////） |
 |
 |
| /////////////// |
////////// |
|
